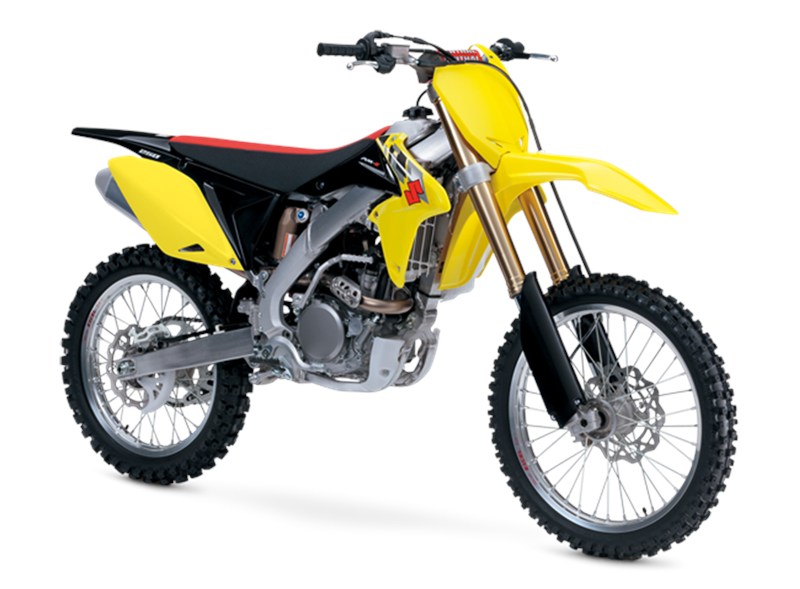

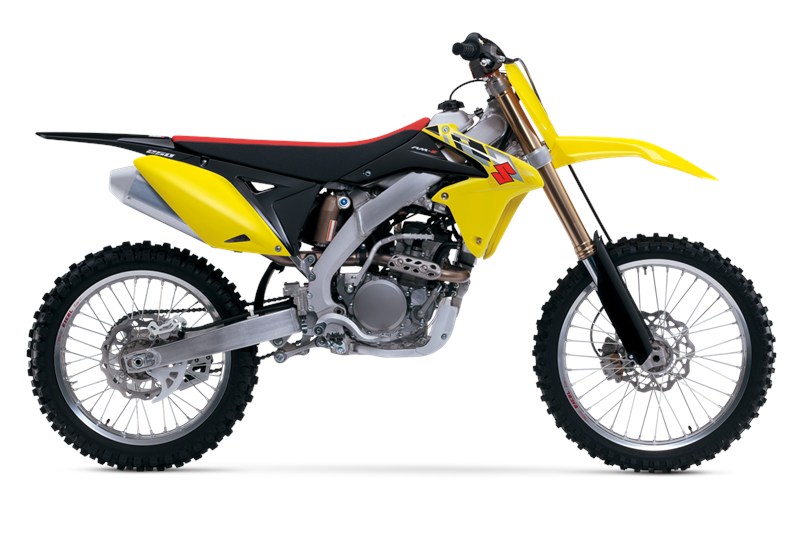

2014 Suzuki RM-Z250

2014 Suzuki RM-Z250
Champion Yellow
MSRP: $7,599.00
Manufacturer: Suzuki
Condition: New

Description

For 2014, the Suzuki RM-Z250 is still the bike to beat! It features engine performance designed for mid- to top-end performance and offers smooth power delivery. The result is performance that lets you blast out of turns and blow by the competition on the straights. The RM-Z250 incorporates a solid chassis design and an amazing suspension with the Separate Function front Fork (SFF) from Showa. It provides stable handling so you can carve up the tightest tracks on your way to the top of the podium!

Champions Choose Suzuki...and Suzuki supports future champions! In addition to all the high-tech features and race-winning performance of the 2014 RM-Z models, Suzuki offers the best amateur racing program around!

Get an edge on the competition by finishing out the 2013 contingency year on a Champion Approved 2014 RM-Z450. Suzuki will be offering millions in contingency for 2013 at events nationwide!

Motocross Contingency Overview

Specifications

Engine

Engine
249cc, 4-stroke, liquid-cooled, single cylinder, DOHC
Bore Stroke
77.0mm (3.0 in) x 53.6mm (2.1 in)
Compression Ratio
13.5:1
Fuel System
Fuel Injection
Starter
Primary kick
Lubrication
Semi-dry sump
Ignition
Electronic ignition (CDI)


Chassis

Overall Length
2170 mm (85.4 in)
Overall Width
830 mm (32.7 in)
Overall Height
1270 mm (50.0 in)
Wheelbase
1475 mm (58.1 in)
Ground Clearance
345 mm (13.6 in)
Seat Height
955 mm (37.6 in)
Curb Weight
106.5 kg (235 lbs)
Transmission
5-speed constant mesh
Final Drive
Chain, DID520DMA4, 114 links
Suspension Front
Inverted telescopic, coil spring, oil damped
Suspension Rear
Link type, coil spring, oil damped
Brakes Front
Disc brake
Brakes Rear
Disc brake
Tires Front
80/100-21 51M, tube type
Tires Rear
100/90-19 57M, tube type
Fuel Tank Capacity
6.5 L (1.7 US gallons)
Color
Champion Yellow / Solid Black


Warranty

Warranty
No Warranty


Features

Key Features

  • ECM ignition program has been changed for improved starting performance.
  • Stylish two-tone radiator shrouds with new aggressive graphics and yellow number plate accentuate the RM-Z250's agile looks.

Engine Features

  • Two couplers are included for quickly adjusting the fuel setting to suit the riding conditions. One is for a richer fuel setting than the stock setting and the other is for a leaner fuel setting. Riders can change the fuel setting to suit the best riding conditions by simply connecting either coupler.
  • The 249cc, 4-stroke, fuel-injected, DOHC engine, with a compact and lightweight design, powers the RM-Z250's championship-winning performance.
  • Through feedback from factory racing, the piston and piston pin is developed using Finite Element Method (FEM) analysis.
  • The crankcase reed valve has been revised for more efficient lubrication. The new oil strainer has a stronger magneto to capture contaminants from the engine oil. Together these changes contribute to better throttle response and smoother power delivery.
  • The advanced battery-less fuel-injection (FI) system features a 44mm throttle body with progressive throttle linkage and a 16-bit computer. The fuel injection system uses a unique capacitor-assisted starting system and is powered by a durable, lightweight magneto-generator after starting.
  • The aluminum cylinder with Suzuki Composite Electrochemical Material (SCEM) coating is built for durability, light weight and efficient heat transfer.
  • The muffler body uses conventional bolts in end cap instead of rivets to simplify the replacement of the glass wool packing in the muffler.
  • A new ECM with higher processing performance and a new high power ignition coil optimize combustion efficiency for increased roll-on performance.
  • The RM-Z250's cooling efficiency is increased thanks to a redesigned radiator fin and revised water hose routing, making the bike's high performance power output more stable, even in the most demanding conditions. RM-Z250's also features a new by-pass hose routing to simplify occasional radiator maintenance.
  • FI indicator (optional part: 36380-28H00) has hour meter function, indicates how many hours engine running.

Transmission Features

  • The transmission design achieves a smooth yet solid shift feel. The method of fastening the sprocket attains a quick shift feel.

Chassis Features

  • Smart chassis design details include footrest brackets shaped to help prevent mud clogging.
  • The front fork spring pre-load and damping force are fully adjustable, allowing wider range of settings.
  • The Separate Function front Fork (SFF) from Showa, separates the spring and damping tasks. The right leg holds the spring, while the left leg incorporates the cartridge assembly to manage damping. This results in reduced friction, increased absorption performance, and weight saving.
  • Race-inspired disc rotors and Excel aluminum rims are standard equipment.
  • Renthal aluminum Fatbar is standard equipment. It has more strength and less vibration than aluminum straight handlebars
  • To maintain the RM-Z's renowned handling performance, each bike's rear suspension features a Showa Piggyback shock with setting changes and adjustments to best match with the increased engine performance and front forks changes. The design allows enhanced suspension performance for a wider variety of riders.
  • The frame and seat rail have been refined for optimized rigidity balance. The result is an ideal balance of nimble handling and stability.
  • The gripper seat has projecting cross-shaped patterns on its red top surface to provide additional grip.

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
