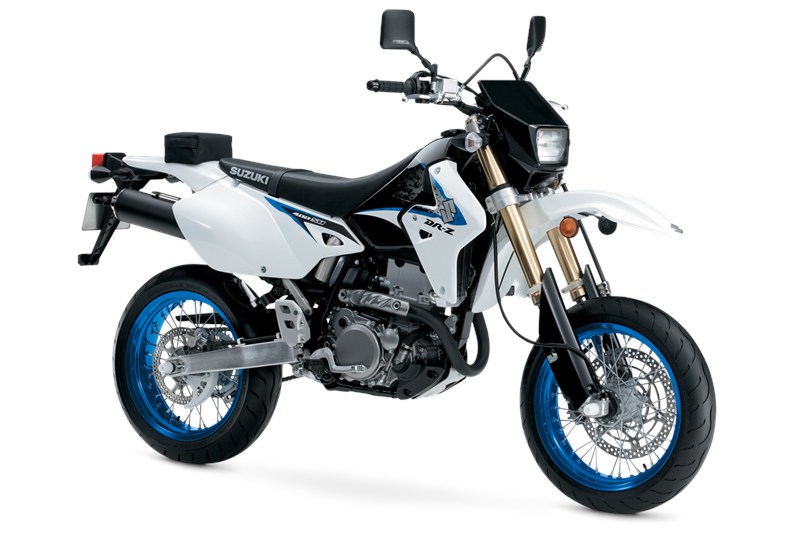

2013 Suzuki DR-Z400SM

2013 Suzuki DR-Z400SM
White-Black
MSRP: $6,999.00
Manufacturer: Suzuki
Condition: New

Description

The Suzuki DR-Z400SM is a street legal bike for serious dirt bike enthusiasts. It's not uncommon to take the SuperMoto down a twisty forest trail as well as a tight canyon corners. Its 398cc liquid-cooled, four-stroke engine provides strong low-rpm torque and crisp throttle response for any of these occasions. They key difference from the DR-Z400SM and the DR-Z400S is the inverted forks. Inverted front forks contribute to less unsprung weight and improved overall handling.

Specifications

Engine

Engine
398cc, 4-stroke, liquid-cooled, single cylinder, DOHC
Bore x Stroke
90.0 mm x 62.6 mm (3.54 in x 2.44 in)
Compression Ratio
11.3 : 1
Fuel System
MIKUNI BSR36, single
Starter
Electric
Lubrication
Dry sump


DriveTrain

Transmission
5-speed constant mesh
Final Drive
RK520KZO, 110 links


Chassis

Suspension Front
Inverted telescopic, coil spring, oil damped
Suspension Rear
Link type, coil spring, oil damped
Brakes Front
Disc brake
Brakes Rear
Disc brake
Tires Front
120/70R17M/C 58H, tube type
Tires Rear
140/70R17M/C 66H, tube type
Fuel Tank Capacity
2.6 US - Including Reserve
Color
White/Black


Electrical

Ignition
Electronic ignition (CDI)


DimensionsandCurbWeight

Overall Length
2225 mm (87.6 in)
Overall Width
855 mm (33.7 in)
Wheelbase
1460 mm (57.5 in)
Ground Clearance
260 mm (10.2 in)
Seat Height
890 mm (35.0 in)
Curb Weight
146 kg (321 lbs)


Warranty

Warranty

12 month unlimited mileage limited warranty.



Features

Key Features

  • Suzuki's Supermotard model based on DR-Z400S - combines Supermotard style and features in a narrow, lightweight street-legal package.

Engine Features

  • Automatic decompression system for quick/easy engine starts.
  • Compact 4-valve cylinder head with 36mm intake valves, 29mm exhaust valves, narrow 28-degree included valve angle and shim-under-bucket valve adjustment system.
  • Electric start with lightweight starter motor and a compact 6.5 amp maintenance-free battery.
  • Forged aluminum piston is 10 percent lighter than a cast piston and receives additional oil-cooling to the piston crown through a crankcase oil jet.
  • Lightweight 398cc, DOHC, liquid-cooled, dry-sump engine produces strong, tractable low-rpm power.
  • SCEM-plated cylinder (nickel-silicon-phosphorous) is lighter and more durable than an iron liner with excellent heat transfer properties.
  • Smooth throttle response with a Mikuni™ BSR36 CV-type carburetor fed by 6-liter airbox. The left side cover has quick-release fasteners for easy access to the air filter.
  • Thermostatically controlled cooling fan mounted to the left radiator helps maintain consistent operating temperature in traffic.

Transmission Features

  • Additional weight savings with magnesium valve cover, clutch cover, and magneto cover.
  • Compact 5-speed transmission utilizes a cable-operated clutch with separate outer cover for simplified clutch maintenance.

Chassis Features

  • A fully adjustable rear shock absorber with high/low speed compression damping adjuster and aluminum swingarm for precise rear wheel control.
  • A bolt-on aluminum subframe helps reduce weight and simplify maintenance.
  • RK Excel aluminum rims and radial tires: 120/70-R17 front, 140/70- R17 rear.
  • Chrome-moly steel frame tuned for Supermoto style riding is torsionally strong with minimal weight. The backbone tube, front down tube, and steering head gussets form the dry-sump engine oil tank.
  • Long travel, Showa-brand inverted front fork derived from RM250 - features adjustable compression/rebound damping and alumite coating on inner tube surfaces for smooth action.
  • New front and rear axle sliders
  • Strong braking performance supplied by a front disc brake with a large 300mm floating-type rotor and dual-piston caliper, plus 240mm rear disc brake with single-piston caliper

Additional Features

  • Additional weight savings with magnesium valve cover, clutch cover, and magneto cover.
  • Compact 5-speed transmission utilizes a cable-operated clutch with separate outer cover for simplified clutch maintenance.
  • Compact digital instrument cluster with speedometer, odometer, twin-trip meters with addition/subtraction capability, clock, timer and stopwatch functions.
  • On-road legal lighting with bright 60/55 watt halogen headlight, compact tail/stoplight, lightweight, rubber-mounted turn signals and horn.
  • Renthal tapered aluminum handlebar for reduced vibration and an aggressive look.

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
