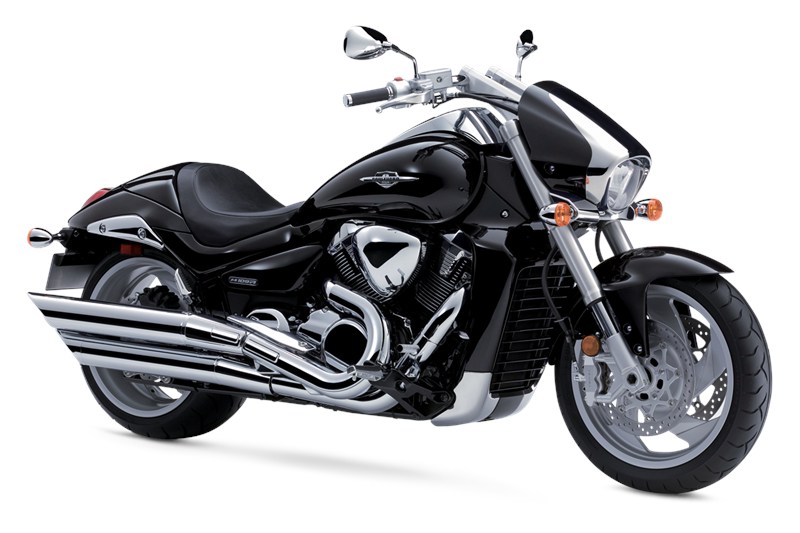

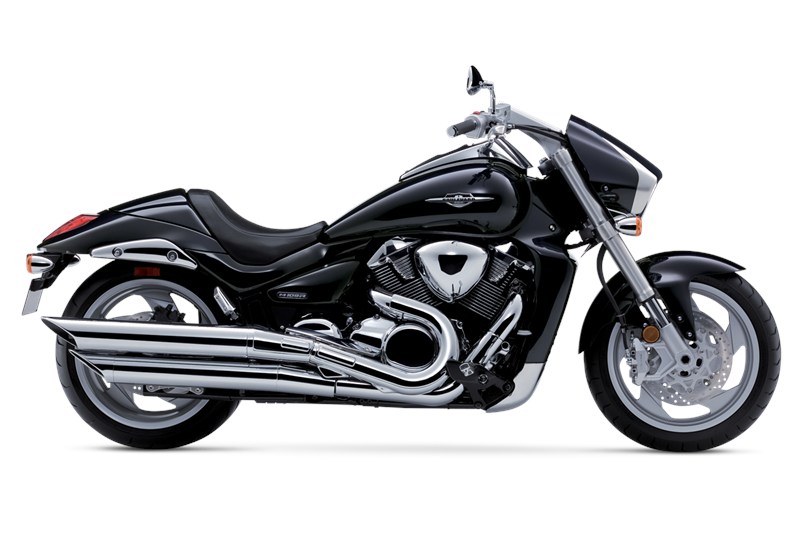

2013 Suzuki BOULEVARD M109R

2013 Suzuki BOULEVARD M109R
Glass Sparkle Black
MSRP: $14,299.00
Manufacturer: Suzuki
Condition: New

Description

The sound of power. Looking for a muscular cruiser that gets your adrenaline flowing? The Suzuki Boulevard M109R delivers that by combining sleek classic styling and unparalleled performance. The M109R features an advanced chassis built for effortless cruising across town, or across state lines. Its unrivaled capabilities are born from Suzuki's championship-winning race heritage. Each bike's magnificent performance begins with a 1783cc, 8-valve DOHC, 54-degree, liquid-cooled, V-Twin engine. The M109R’s engine is tuned to produce massive torque all the way from idle to redline, which translates into acceleration that you have to feel to believe. The big V-twin also produces a throaty, aggressive exhaust that identifies the M109R as a power cruiser beyond compare.

Specifications

Engine

Engine
1783 cc (108.8 cu. in), 4-stroke, 2-cylinder, liquid-cooled, DOHC, 54-degree V-Twin
Bore x Stroke
112.0 mm x 90.5 mm (4.41 in x 3.56 in)
Compression Ratio
10.5 : 1
Fuel System
Fuel Injection
Starter
Electric


DriveTrain

Transmission
5-speed constant mesh
Final Drive
Shaft Drive


Chassis

Suspension Front
Inverted telescopic, coil spring, oil damped
Suspension Rear
Link type, oil damped, coil spring
Brakes Front
Disc, twin
Brakes Rear
Disc
Tires Front
130/70R18M/C 63V, tubeless
Tires Rear
240/40R18M/C 79V, tubeless
Fuel Tank Capacity
4.9 US
Color
Glass Sparkle Black


Electrical

Ignition
Electronic ignition (Transistorized)


Dimensions

Overall Length
2450 mm (95.5 in)
Overall Width
875 mm (34.4 in)
Wheelbase
1710 mm (67.3 in)
Ground Clearance
130 mm (5.1 in)
Seat Height
705 mm (27.8 in)
Curb Weight
347 kg (764 lbs)


Warranty

Warranty

12 month unlimited mileage limited warranty.



Features

Engine Features

  • A 1783cc, 8-valve DOHC, 54-degree, liquid-cooled, V-Twin engine is designed to produce a massive tractable power and responsive torque.
  • Huge 4.4-inch (112mm) forged aluminum-alloy pistons. These are one of the largest reciprocating gasoline engine pistons being used in any production passenger car or motorcycle, while featuring race-proven design to reduce friction and inertial mass.
  • The 2-into-1-into-2 stainless steel chromed exhaust system features Suzuki's digitally controlled SET (Suzuki Exhaust Tuning) system for optimum engine performance and a powerful V-Twin sound.
  • Suzuki's class-leading electronic fuel injection system features the Suzuki Dual Throttle Valve system (SDTV) with 56mm throttle bodies, which maintains optimum air velocity for smooth low to mid-range throttle response.
  • Suzuki Advanced Sump System (SASS), a compact dry sump lubrication system, provides reduced engine height, a lower crankshaft position and a lower center of gravity.
  • Engine bore is lined with Suzuki's race proven SCEM (Suzuki Composite Electrochemical Material) for optimum heat transfer, tighter piston-to-cylinder clearances and reduced weight.
  • A dual spark plug per cyclinder ignition system is controlled by a powerful 32-bit ECM for improved combustion efficiency and reduced exhaust emissions.
  • A unique two-stage cam drive system creates a compact cylinder head design, reduces overall engine height and creates a lower center of gravity.
  • A three-piece, 9.5-liter volume airbox (with dual intakes) includes two pleated fabric air cleaner elements located on both sides of the engine.

Transmission Features

  • 5 speed constant mesh

Chassis Features

  • A high-tensile double cradle steel frame is built to confortably handle all the power and torque while delivering agile handling and a plush, smooth ride.
  • Inverted front forks feature race-proven cartridge internals with 46mm stanchion tubes and provide 5.1-inches of wheel travel.
  • A cast aluminum alloy swingarm works with a progressive shock linkage and a preload-adjustable single rear shock delivering 4.6 inches of wheel travel.

Additional Features

  • The widest 240/40R18M/C 79V tubeless rear tire ever used on a SUZUKI motorcycle.
  • Instrument cluster including a digital tachometer, gear position indicator and LED indicator lights is integrated into the top of the headlight cowl.
  • Tank-mounted analog speedometer and LCD odometer, dual tripmeters, fuel gauge and clock.

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
