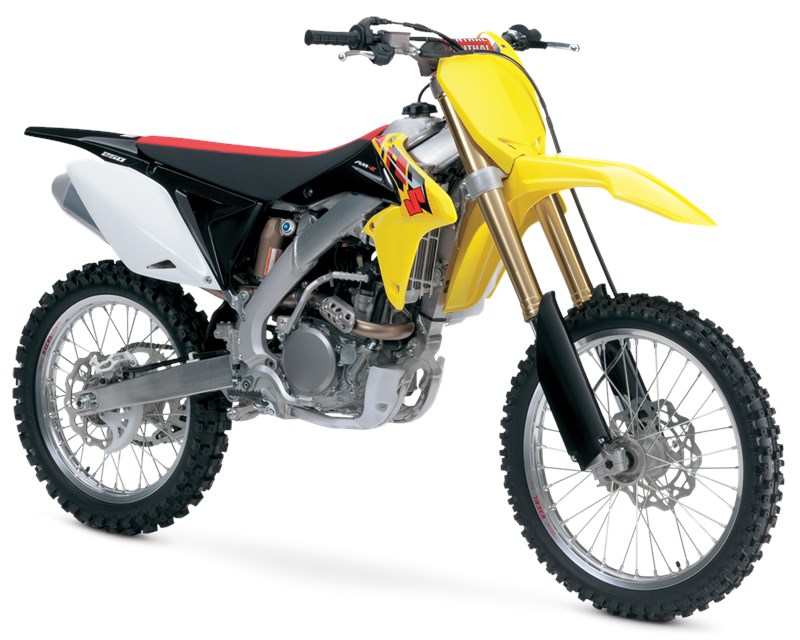

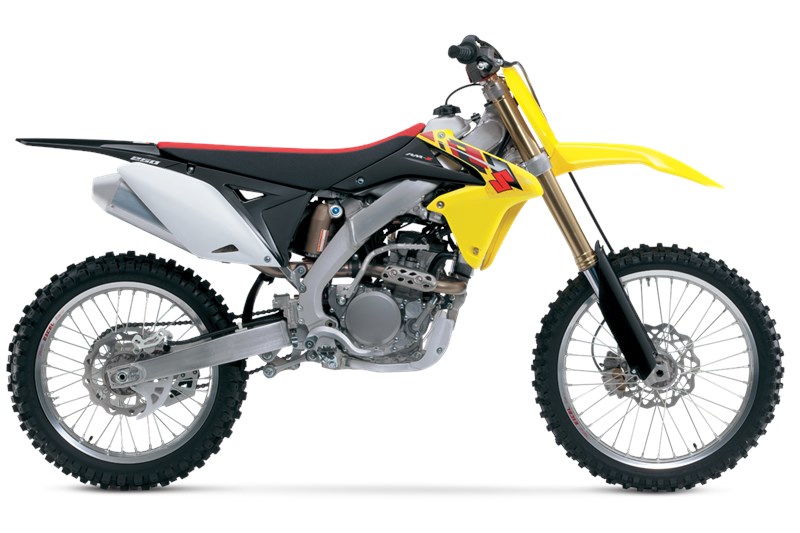

2013 Suzuki RM-Z250

2013 Suzuki RM-Z250
Champion Yellow
MSRP: $7,599.00
Manufacturer: Suzuki
Condition: New

Description

For 2013, the Championship-caliber Suzuki RM-Z250 is more potent than ever. It features a long list of engine modifications designed to increase the mid- to top-end performance and provide smoother power delivery. The result is performance that lets you blast out of turns and blow by the competition on the straights. The RM-Z250 also features a redesigned chassis and suspension, including an all-new Separate Function front Fork (SFF) from Showa. It provides crisper, more stable handling so you can carve up the tightest tracks on your way to the top of the podium!

Champions Choose Suzuki...and Suzuki supports future champions! In addition to all the high-tech features and race-winning performance of the 2013 RM-Z models, Suzuki offers the best amateur racing program around!

Get an edge on the competition by finishing out the 2012 contingency year on a Champion Approved 2013 RM-Z450. American Suzuki will be offering millions in contingency for 2013 at events nationwide!

Motocross Contingency Overview



Specifications

Engine

Engine
249cc, 4-stroke, liquid-cooled, single cylinder, DOHC
Bore Stroke
77.0mm (3.0 in) x 53.6mm (2.1 in)
Compression Ratio
13.5:1
Fuel System
Fuel Injection
Starter
Primary kick
Lubrication
Semi-dry sump
Ignition
Electronic ignition (CDI)


Chassis

Overall Length
2170 mm (85.4 in)
Overall Width
830 mm (32.7 in)
Overall Height
1270 mm (50.0 in)
Wheelbase
1475 mm (58.1 in)
Ground Clearance
345 mm (13.6 in)
Seat Height
955 mm (37.6 in)
Curb Weight
106.5 kg (235 lbs)
Transmission
5-speed constant mesh
Final Drive
Chain, DID520DMA4, 114 links
Suspension Front
Inverted telescopic, coil spring, oil damped
Suspension Rear
Link type, coil spring, oil damped
Brakes Front
Disc brake
Brakes Rear
Disc brake
Tires Front
80/100-21 51M, tube type
Tires Rear
100/90-19 57M, tube type
Fuel Tank Capacity
6.5 L (1.7 US gallons)
Color
Champion Yellow / Solid Black


Warranty

Warranty
No Warranty


Features

Key Features

  • In 2010 Suzuki revolutionized race-day tuning with the introduction of a fuel-setting adjustment system. The RM-Z250 uses this innovative design, which consists of three couplers that allow you to quickly adjust the fuel setting to suit riding conditions. One coupler contains the stock settings, a second is for a richer fuel setting than the stock setting and the third is for a leaner setting.
  • All-new Showa Separate Function front Fork (SFF) separates spring and damping functions. The right leg holds the spring, while the left leg incorporates the cartridge assembly to manage damping. The SFF design reduces friction, increased absorption performance and is lighter weight resulting in remarkably smooth performance over a variety of track conditions.
  • The frame and seat rail have been refined for optimized rigidity balance. The result is an ideal balance of nimble handling and stability.
  • A new transmission provides smoother and crisper shifting. The clutch's cam release has also been modified for lighter operation and enhanced feel.
  • Riders can now track engine-operating time and better manage maintenance intervals using the optional FI indicator (Part #: 36380-28H00)

Engine Features

  • Compact and lightweight 4-stroke, 249cc, fuel-injected, DOHC engine is modified for increased reliability. It provides outstanding performance across an incredibly wide powerband.
  • A newly designed piston and piston pin was developed using Finite Element Method (FEM) analysis. The new piston is 3% lighter without any compromise to strength and integrity.
  • The crankcase reed valve has been revised for more efficient lubrication. The new oil strainer has a stronger magneto to capture contaminants from the engine oil. Together these changes contribute to better throttle response and smoother power delivery.
  • An advanced battery-less fuel-injection (FI) system features a 44mm throttle body with progressive throttle linkage and a 16-bit computer for instant throttle response.
  • Aluminum cylinder, with Suzuki Composite Electrochemical Material (SCEM) coating, is designed for durability, light weight and efficient heat transfer.
  • Redesigned exhaust system meets new FIM sound limits while increasing mid- to high-rpm power and delivery. The new muffler body now uses conventional bolts in end cap instead of rivets to simplify the replacement of the glass wool packing in the muffler.
  • A new ECM with higher processing performance and a new high power ignition coil optimize combustion efficiency for increased roll-on performance.
  • The RM-Z250's cooling efficiency is increased thanks to a redesigned radiator fin and revised water hose routing, making the bike's high performance power output more stable, even in the most demanding conditions. RM-Z250's also features a new by-pass hose routing to simplify occasional radiator maintenance.

Transmission Features

  • A new transmission provides smoother and crisper shifting. The clutch's cam release has also been modified for lighter operation and enhanced feel.

Chassis Features

  • The frame and seat rail have been refined for optimized rigidity balance. The result is an ideal balance of nimble handling and stability.
  • The front fork inner tube diameter has been increased from 47mm to 48mm further improving stability and absorption. The spring pre-load is now adjustable, which allows a wider range of adjustment for any level of rider.
  • New Dunlop MX51 series front and rear tires provide enhanced traction.
  • The high-quality Renthal handlebars feature a tapered design and are fixed to the triple clamp on a rubber mount.
  • To maintain the RM-Z's renowned handling performance, each bike's rear suspension features a Showa Piggyback shock with setting changes and adjustments to best match with the increased engine performance and front forks changes. The design allows enhanced suspension performance for a wider variety of riders.

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
