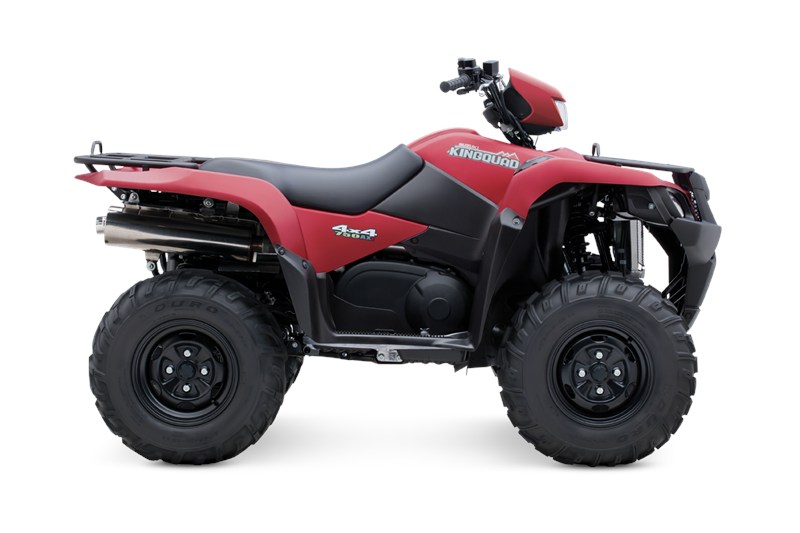

2013 Suzuki KINGQUAD 750AXI POWER STEERING 30TH ANNIVERSARY EDITION

2013 Suzuki KINGQUAD 750AXI POWER STEERING 30TH ANNIVERSARY EDITION
Metallic Matte Royal Red
MSRP: $9,899.00
Manufacturer: Suzuki
Condition: New

Description

Three decades ago, Suzuki literally invented the four-wheel ATV. The original Suzuki LT-125 established Suzuki as the First on 4-Wheels. With the 30th anniversary of that breakthrough, the Suzuki KingQuad 750AXi Power Steering carries on the tradition of performance that rules. It's engineered to tackle the toughest jobs and nastiest trails without breaking a sweat. It's loaded with technologically advanced features for impressive all-around performance, inlcuding advanced power steering and more responsive handling. The fuel-injected 722cc engine, housed inside the high-tensile steel frame, develops abundant torque (especially in the low- to mid-rpm range), which gives the 750AXi Power Steering exceptional performance. Independent rear suspension, a locking front differential and a host of other innovative features place the KingQuad 750AXi Power Steering at the front of the pack.

30th Anniversary Edition is available in Metallic Matte Royal Red

Specifications

Engine

Bore Stroke
104.0 mm (4.094 in) x 85.0 mm (3.346 in)
Compression Ratio
10.0 : 1
Engine
722cc (44.1 cu. in), 4-stroke, liquid-cooled, DOHC
Fuel System
Suzuki Fuel Injection
Ignition
Electronic ignition (CDI)
Lubrication
Wet Sump
Starter
Electric starter


Chassis

4WD
4WD
Brakes Front
Disc brake, twin
Brakes Rear
Sealed oil-bathed multi-disc
Color
Metallic Matte Royal Red
Curb Weight
305 kg (672 lbs)
Final Drive
Shaft drive
Fuel Tank Capacity
17.5 L (4.6/3.8 US/Imp gal)
Ground Clearance
260 mm (10.2 in)
Overall Length
2115 mm (83.3 in)
Overall Width
1210 mm (47.6 in)
Seat Height
920 mm (36.2 in)
Suspension Front
Independent, double wishbone, coil spring, oil damped
Suspension Rear
Independent, double wishbone, coil spring, oil damped
Tires Front
AT25 × 8-12, tubeless
Tires Rear
AT25 × 10-12, tubeless
Transmission
CVT (V-belt), with high-/low-range, and reverse
Wheelbase
1285 mm (50.6in)


Warranty

Warranty

12 month limited warranty.



Features

Key Features

  • 30th Anniversary Edition of the KingQuad 750AXi 4x4 Power Steering is available in a new Metallic Matte Royal Red
  • Compact and lightweight electric power steering positioned high on the vehicle to help avoid water and debris, delivers lighter steering in a variety of conditions to help reduce rider fatigue.
  • Suzuki fuel injection system provides excellent throttle response, fuel efficiency and quick engine starts.

Engine Features

  • 722cc liquid-cooled DOHC 4-valve fuel-injected engine tuned to deliver a mighty low-to-mid range torque along with a powerful high-rpm output.
  • Lightweight aluminum cylinder bore is electro-plated with Suzuki's own race proven SCEM (Suzuki Composite Electrochemical Material) for improved heat transfer and tighter piston clearance.
  • Cylinder canted forward 48 degrees for lower center of gravity, reduced engine height and lower seat height, and is rubber mounted with two balancer shafts for smooth performance.
  • Compact 4-valve cylinder head with large 36mm intake valves and straight intake ports for increased cylinder charging efficiency – includes lightweight magnesium valve cover
  • Semi-gear driven valve system minimizes cam sprocket size allowing a short/narrow cylinder head design and reduced overall engine height.
  • The rubber-mounted engine uses two balancer shafts to keep the powerful ride smooth.
  • Ultra-efficient air filter has both paper (for superior filtration) and foam (easily cleaned and re-used) elements for better durability and less maintenance.

Transmission Features

  • QuadMatic™ CVT-type automatic transmission designed for maximum versatility and convenience – fender-mounted gate-type shifter operation for high/low forward ranges, plus neutral and reverse.
  • Compact torque-sensing limited-slip front differential offers more powerful traction plus light steering effort. A differential-lock system provides serious four-wheel-drive traction.
  • Convenient handlebar-mounted push-button controls allow the rider to easily select between 2WD, 4WD and differential-lock 4WD to get the right setting for any traction condition.
  • Advanced engine brake system minimizes free-wheeling to reduce downhill speed.

Chassis Features

  • High-tensile steel frame with special attention given to a balance of rigidity and weight for optimum chassis performance and a comfortable ride.
  • Independent double A-arm front suspension (6.7 inches of wheel travel) includes large diameter shock absorbers with 5-way spring preload adjustment
  • Fully independent, A-arm and I-beam rear suspension with long suspension travel (7.7 inches of wheel travel), includes large diameter shock absorbers with 5-way spring preload adjustment and large diameter rear sway-bar.
  • Large, 200mm diameter front disc brakes with single-piston calipers designed for strong, reliable braking performance.
  • Sealed, multi-plate rear brake system, with a clutch-type design provides high durability, offers reduced unsprung weight, and is low-maintenance.
  • Pressed-aluminum black wheels for reduced unsprung weight.
  • Comfortable T-shaped seat with tapered design for rider mobility, plus thick padding for support
  • Polyethylene skid plate provides front-to-rear under carriage protection with minimal resistance over rocks and rough terrain.

Utility/Convenience Features

  • Easy-to-read LCD instrument display – includes speedometer (mile/km selectable), odometer, twin-trip meters, hour meter, clock, fuel gauge, drive range.
  • Distinctively styled 30W multi-reflector halogen headlights, and compact 5/21W tail light and brake light – additional 40W multi-reflector, handlebar-mounted auxiliary light.
  • High output magneto generator system and 18-amp maintenance-free battery provides extra power.
  • Large 4.6 gallon fuel tank positioned below seat for a low center-of-gravity – includes vacuum-operated petcock, ratchet-style fuel cap and convenient bar-type fuel gauge.
  • A handy storage compartment is mounted on the right-side front fender.
  • Front and rear cargo racks are covered in a wrinkle-finish black paint for increased durability.

Special

  • Minimum Age: 16 Years Old.
