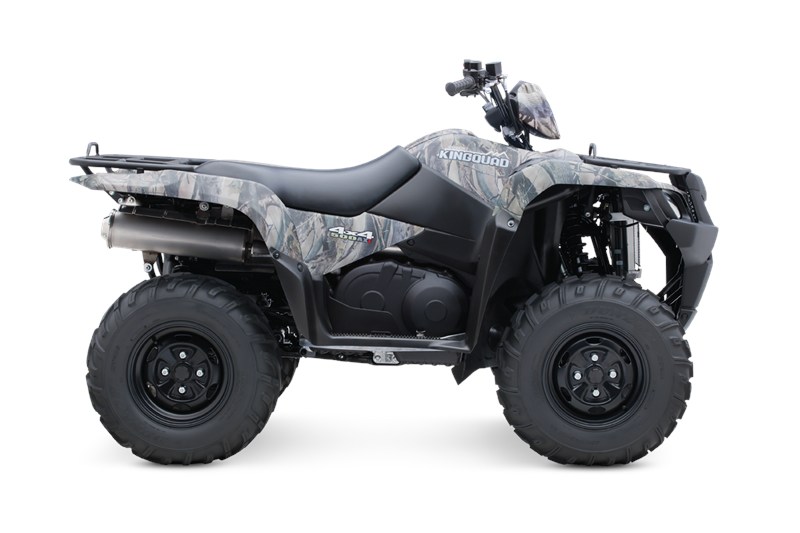

2013 Suzuki KINGQUAD 500AXI POWER STEERING CAMO
True Timber XD3
MSRP: $8,999.00
Manufacturer: Suzuki
Condition: New
Description
Three decades ago, Suzuki literally invented the four-wheel ATV. The original Suzuki LT-125 established Suzuki as the First on 4-Wheels. With the 30th anniversary of that breakthrough, the Suzuki KingQuad 500AXi Power Steering carries on the tradition of performance that rules. Boasting the same advanced technology as the extraordinary KingQuad 750AXi, it's engineered to help you cut the work day down to size - or conquer the toughest trails. The 500AXi Power Steering offers plenty of class-leading features including advanced power steering providing lighter steering and more responsive handling, while its fuel-injected 493cc engine gives the 500AXi exceptional performance. Independent rear suspension, a locking front differential and a host of other impressive features place the KingQuad 500AXi at the front of the pack.
New for 2013: True Timber XD3
Specifications
Engine
Bore
3.228
Stroke
3.228
Bore Stroke
87.5 mm x 82.0 mm (3.228 in)
Engine
493cc, 4-Stroke, liquid-cooled, singe cylinder, OHC
Compression Ratio
10.0 : 1
Starter
Electric
Lubrication
Wet Sump
Ignition
Electronic ignition (CDI)
Fuel System
Suzuki fuel injection
Chassis
4WD
4WD
Overall Length
2115 mm (83.3 in)
Overall Width
1210 mm (47.6 in)
Wheelbase
1285 mm (50.6in)
Ground Clearance
260 mm (10.2 in)
Seat Height
920 mm (36.2 in)
Curb Weight
300 kg (661 lbs)
Transmission
CVT (V-belt), with high-/low-range, and reverse
Final Drive
Shaft drive
Suspension Front
Independent, double wishbone, coil spring, oil damped
Brakes Front
Disc brake, twin
Brakes Rear
Sealed oil-bathed multi-disc
Tires Front
AT25 x 8-12, tubeless
Tires Rear
AT25 x 10-12, tubeless
Fuel Tank Capacity
17.5 L (4.6/3.8 US/Imp gal)
Color
True Timber XD3
Suspension Rear
Independent, double wishbone, coil spring, oil damped
Warranty
Warranty
12 month limited warranty.
Features
New Features
- True Timber XD3
Key Features
- Advanced electric power steering system gives the KingQuad 500 AXi lighter steering and even more responsive handling than ever.
- Suzuki fuel injection system, featuring high-performance motorcycle technology, provides excellent throttle response, fuel efficiency and quick engine starts under all operating conditions.
Engine Features
- A powerful 493cc, SOHC, single-cylinder, liquid-cooled, four-stroke engine designed for a wide powerband provides strong performance.
- Lightweight aluminum cylinder bore is electro-plated with Suzuki's own race proven SCEM (Suzuki Composite Electrochemical Material) for improved heat transfer and tighter piston clearance.
- Uses a cylinder canted forward for lower center of gravity, reduced engine height and lower seat height.
- Compact 4-valve cylinder head with large intake valves and straight intake ports for increased cylinder charging efficiency
- Sportbike-derived chain-and-gear camshaft drive system allows a short/narrow cylinder head design and reduced overall engine height.
- Engine counterbalancer shaft for smooth operation.
- High capacity aluminum radiator with large diameter cooling fan for stable engine operating temperature.
Transmission Features
- QuadMatic™ CVT-type automatic transmission designed for maximum versatility and convenience – fender-mounted gate-type shifter operation for high/low.
- Compact torque-sensing limited-slip front differential offers more powerful traction plus light steering effort. A differential-lock system provides serious four-wheel-drive traction.
- Convenient handlebar-mounted push-button controls allow the rider to easily select between 2WD, 4WD and differential-lock 4WD to get the right setting for any traction condition.
- Advanced engine brake system minimizes free-wheeling to reduce downhill speed.
Chassis Features
- Independent double A-arm front suspension (6.7 inches of wheel travel) includes large diameter shock absorbers with 5-way spring preload adjustment.
- Fully independent, I-beam rear suspension with long suspension travel (7.7 inches of wheel travel), includes large diameter shock absorbers with 5-way spring preload adjustment and large diameter rear sway-bar.
- Sealed, multi-plate rear brake system, with a clutch-type design provides high durability, offers reduced unsprung weight, and is low-maintenance
- 25-inch tires mounted on lightweight aluminum-alloy wheels.
- Comfortable T-shaped seat with tapered design for rider mobility, plus thick padding for support.
- Winch-ready chassis with flexible tube routing for wiring from winch mounting space to under the seat.
- Polyethylene skid plate provides front-to-rear under carriage protection with minimal resistance over rocks and rough terrain. Durable plastic guards protect the front and rear half shafts.
Utility/Convenience Features
- Digital instrumentation includes LCD readouts for speedometer, odometer, twin tripmeters, hour meter, clock, fuel gauge, driving range position and drive mode. LED indicator lamps for high, low, neutral, reverse and drive — 2WD/4WD and differential-locked 4WD.
- LED indicator lamps for fuel injection and engine temperature.
- Distinctively-styled 30W multi-reflector halogen headlights, and compact 5/21W tail light and brake light.
- High output magneto generator system and large 18-amp maintenance-free battery provides extra power.
- Large 4.6 gallon fuel tank, positioned for a low center-of-gravity, includes vacuum-operated petcock, ratchet-style fuel cap and convenient bar-type fuel gauge.
- Large 2.8 liter water resistant front storage compartment includes new easy-to-open/close screw-on cap.
- Rugged steel-tube racks with wrinkle paint finish for increased durability and scratch resistance
Special
- Minimum Age: 16 Years Old.
