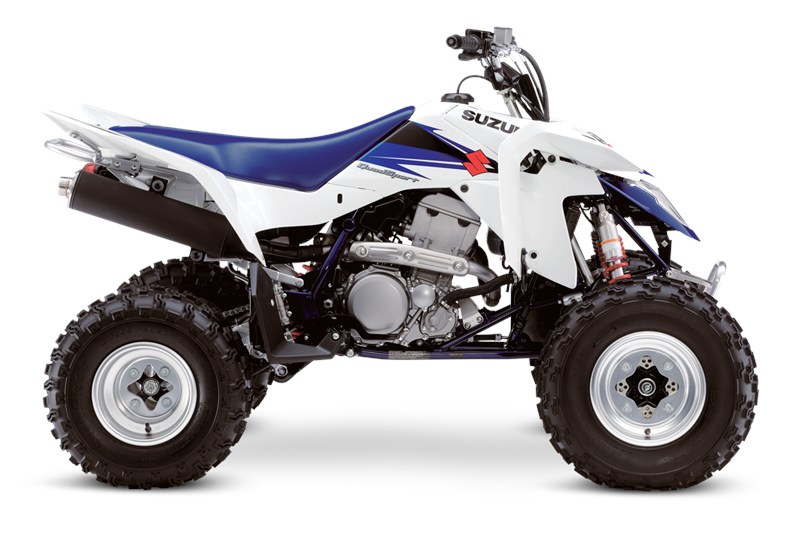

2013 Suzuki QUADSPORT Z400

2013 Suzuki QUADSPORT Z400
White
MSRP: $7,099.00
Manufacturer: Suzuki
Condition: New

Description

The 2013 QuadSport Z400 features Suzuki's Fuel Injection system that provides a cleaner, quicker, and stronger acceleration than ever before. It's the ideal four-wheeler for exciting sport riding on the track, in the sand, or in the woods. Whether you're an avid racer or just out for a quick ride, our sport quads are the most fun you can have on four wheels.

Specifications

Engine

Bore Stroke
90.0 mm (3.543 in) x 62.6 mm (2.465 in)
Compression Ratio
11.3 : 1
Engine
4-stroke, liquid-cooled, DOHC
Fuel System
Fuel injection
Ignition
Electronic ignition (CDI)
Lubrication
Dry sump
Starter
Electric


Chassis

Brakes Front
Disc brake, twin
Brakes Rear
Disc brake
Color
White and Championship Yellow / Black
Curb Weight
193 kg (425 lbs)
Final Drive
RK 520SMOZ10S, 96 links
Fuel Tank Capacity
9.1 L (2.4/2.0 US/Imp gal)
Ground Clearance
265 mm (10.4 in)
Overall Length
1830 mm (72.0 in)
Overall Width
1190 mm (46.9 in)
Seat Height
810 mm (31.9 in)
Suspension Front
Independent, double wishbone, coil spring, oil damped
Suspension Rear
Swingarm type, coil spring, oil damped
Tires Front
AT22 × 7 R10 tubeless
Tires Rear
AT20 × 10 R9 tubeless
Transmission
5-speed forward with reverse
Wheelbase
1245 mm (49.0 in)


Warranty

Warranty

12 month limited warranty.



Features

Key Features

  • The chassis's rigidity balance is changed to improve handling stability, chassis strength and overall performance, particularly in rough terrain.
  • The 2013 Suzuki QuadSport Z400 is engineered for high-performance off-road four-wheeling with smooth power-output and throttle response from Suzuki fuel injection.

Engine Features

  • Liquid-cooling system with high-capacity radiator and thermostatically controlled cooling fan provides consistent engine operating temperature.
  • Engine Control Unit uses a 16-bit CPU and a 96-kilobyte ROM unit. The system is programmed to obtain improved traction by selecting the optimum injection volume, injection timing and ignition timing based on throttle position, engine rpm, and other data monitored.
  • Compact, lightweight 398cc 4-stroke, single-cylinder, liquid-cooled Dual Overhead Cam engine with counter-balancer tuned for tractable power over a wide rpm range.
  • Suzuki fuel-injection system features a 36mm throttle body and 12-hole injector that delivers the fuel/air mix in an efficient fine-mist spray pattern.
  • Dry-sump lubrication system allows a compact crankcase and minimal engine height for optimum engine placement - oil tank is frame-mounted in front of the exhaust head pipes.
  • Convenient electric start system includes Start-In-Gear feature - electric start system and CDI ignition are powered by compact maintenance-free battery.

Transmission Features

  • Five-speed transmission with cable-operated clutch includes an easy-to-use reverse gear system: turn the fender-mounted knob and shift to reverse using the gear shift lever.

Chassis Features

  • A high performance front brake lever position adjustment mechanism allows brake adjustments to be much easier.
  • Large 6.9 inch dual front disc brakes and single 8.6 inch rear disc brake.
  • The footpegs are 46mm wide.
  • Lightweight, high tensile steel-alloy frame and removable steel sub-frame, plus aluminum swingarm.
  • Long-travel, independent double A-arm front suspension with fully adjustable, piggyback reservoir-style shock absorbers - provides 8.5 in. of wheel travel.
  • Front track is widened by 25mm to improve overall handling stability feel.
  • Large 2.5-gallon fuel tank with two mounting points for quick removal and simplified maintenance.
  • Dual 30/30W, vertically-mounted halogen headlights provide a bold look and bright illumination - large 5/21W taillight/brake light combination.
  • Rear axle shaft taper is changed to heighten rigidity balance and provide optimum performance in conjunction with changes made to front track.
  • Linkage-type rear suspension features fully adjustable, piggyback reservoir-style shock absorber with 9.1 in. of wheel travel, plus 10.4 in. of ground clearance.
  • Styling reflects a powerful attitude with sharp fenders, an overall slim design, and a removable headlight.
  • Lightweight aluminum alloy wheels (F: 10.0 x 5.5, R: 9.0 x 8.0), and radial tires (F: 22 x 7-10, R: 20x10-9), for reduced unsprung weight.

Special

  • Minimum Age: 16 years old.
